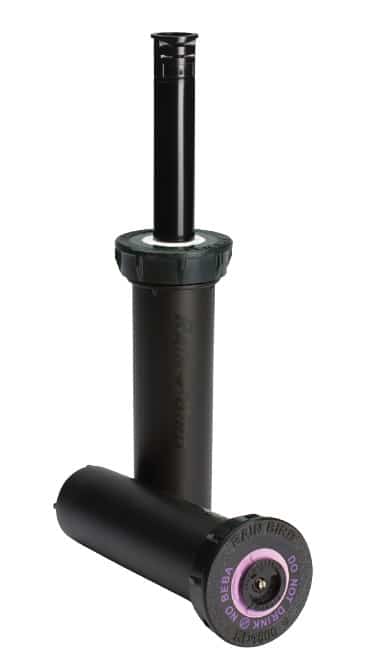

Rain Bird Series 1804 SAM Fixed Pop-up Sprinkler


Rainbird pop-up sprinkler with retractable nozzles and non-return valve, which prevents spray heads from draining at lower altitudes.

Installed in parks and backyards around the world, Rain Bird’s 1800 Series is the world’s No. 1 brand of commercial-grade irrigation spray heads.

Chosen for its reliability, hard-wearing materials and versatility, the 1800 Series offers a wide choice of lift heights and nozzle combinations for watering shrubs, small lawns and irregularly shaped planting areas. Spray heads and precision nozzles customize your sprinkler system to cover virtually any lawn or garden configuration – not the sidewalk or driveway!

The 1800 Series features Rain Bird’s patented retractable mechanism for out-of-sight retraction into the lawn when not in operation, full and partial circle coverage and infinite pattern adjustment for optimum head-to-head coverage.

  • Versatile: designed for use with all Rain Bird plastic spray heads. Nozzles sold separately. Maintain constant outlet pressure at 30 psi (2.1 bar). Spray nozzles work best at 30 psi. Ensures maximum nozzle performance, even with different inlet pressures. Maintains constant pressure regardless of the nozzles used.
  • Improved technology: unlike competing PRS sprays, Rain Bird PRS sprays adapt to fluctuating pressure, optimizing flow and promoting a more consistent spray pattern. No parts to install on site. Stronger retraction spring to accommodate changes in elevation of up to 4.2 m. One of the strongest springs in the industry.
  • Features: pop-up height = 10.2 cm | 1/2″ bottom inlet | exposed surface diameter = 5.1 cm | pressure: 25 to 70 psi.


  • Spray distance from 6 to 15 feet.
  • The simple top adjustment screw reduces spraying distance.
  • No tools required to change nozzles.
  • UV-resistant plastic reduces discoloration.
  • Operates efficiently at low water pressure.
  • SAM models: integrated Seal-A-Magic ™ (SAM) check valve.
  • SAM models: Prevents spray head drainage at lower altitudes. Stop wasting water. Put an end to landscape damage caused by flooding and/or erosion.
  • Lower input 1/2 “FNPT
  • Nozzle sold separately


  • Radius: 3′ to 18′ (0.9 to 5.5 m) – Nozzles not included
  • Pressure 15-70 psi (1.0 to 4.8 bar)
  • Flow: 0 to 0.6 bar (8 psi) or more.
Weight 013 kg
Dimensions 6 × 6 × 15 cm
